S-Bar
Electromechanical road barrier system for control of road access
For bar up to 4 m.
24 Vdc gear motor with built-in control unit.
Strength and reliability: tough steel structure, new robust balancing springs guaranteed to 500,000 cycles and elliptical section shaft with high resistance to gusts of wind.
Optional flashing or traffic light can be integrated in cover.
More comfort and safety in programming and maintenance phases: the separate enclosures for electronics and mechanics protect internal parts from potential risks.

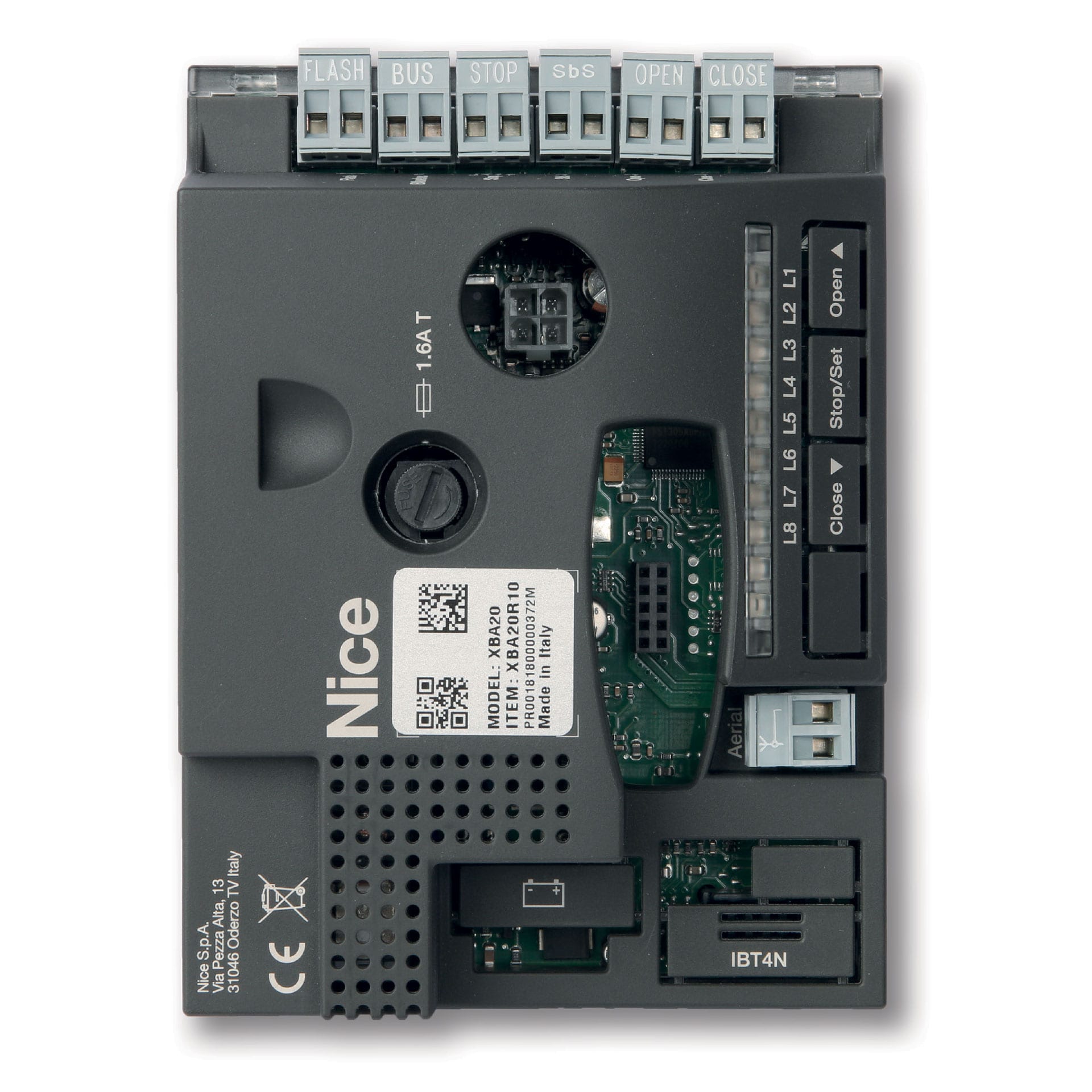

Rapid and easy access to the control unit located in the upper section of the barrier body.
Simple fixture of the completely concealed photocells onto the specially designed seats on the barrier body.
More safety and reliability: obstacle detection and monitoring of motor absorption during automation movement.
Automatic fault diagnostics during operation with consequent signalling of fault type through specific flash sequences.
Provision for connection of latest generation optical and resistive sensitive edges (with 8.2 KOhm resistance).
Energy saving: the system sets to standby when not in use to save power.
No black out: emergency backup power with the optional batteries housed inside the case.
Release from side with Nice triangular key: can be installed on either side.
Dimensions
Technical Specifications
| Code | Description |
|---|---|
| S4BAR | With steel case with protective cataphoresis treatment and paint finish |
| S4BARI | With stainless steel case |
| Code | S4BAR / S4BARI |
|---|---|
| ELECTRICAL DATA | |
| Power supply (Vac 50/60 Hz) | 230 |
| Power supply (Vdc) | 24 |
| Absorption (A) | 1 |
| Power (W) | 300 |
| PERFORMANCE DATA | |
| Speed (s) | Equal to or greater than 4 seconds (more with accessories). |
| Torque (Nm) | 100 |
| Work cycle (cycles/hour)* | 100 |
| DIMENSIONAL AND GENERAL DATA | |
| Protection level (IP) | 44 |
| Working temp. (°C Min/Max) | -20 – +50 |
| Dimensions (mm) | 330x180x1180 h |
| Weight (kg) | 46 |
Compatibility table with control systems and accessories
* Radio receiver incompatible with Opera system
In order to have a fully functional barrier gate operator system:
Accessories
